Angular Positioning System for Metrology/Micromachining

July 31, 2017

Encoder, Bearing, Torque Motor is All in One Slim Package



SCHAUMBURG, IL (August 2017) — The new SRP 5000 angular positioning system from HEIDENHAIN incorporates its high accuracy MRP 5000 angle encoder with accomplished bearing technology along with a unique ETEL torque motor with ultra-low detent torque. This combination allows for very high stiffness with low cost of ownership and can easily replace rotary air bearing systems used for metrology. Industries that could take advantage of the SRP 5000 system are semiconductor manufacturing, metrology and micromachining.

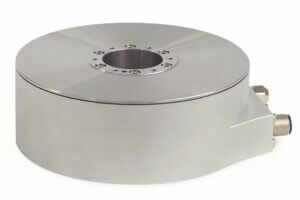

The SRP 5000 is compact in size and is only 46.3mm in height and 124mm in diameter. The system can be ordered in incremental or absolute models, where the incremental versions have encoders with 30,000 signal periods per revolution and system accuracies down to +/- 2.5 arc seconds. The absolute version has the same accuracy level and resolutions to 28 bits via the EnDat 2.2 interface.

The slotless iron-core ETEL torque motor has a peak torque of 2.7 Nm, a rated torque of 0.387Nm and the detent torque is just a mere 0.2% of the rated value. The motor is rated for 300 RPM and permits an extraordinarily smooth motion.

The SRP 5000 is best used with the AccurET position controllers from ETEL as absolute peak performance can be achieved with regard to dynamics, thermal management, and position stability. Other controllers can be used, however thermal overload protection must be maintained in the controller.

HEIDENHAIN CORPORATION is the North American subsidiary of DR. JOHANNES HEIDENHAIN GmbH, a leading international manufacturer of precision measurement and control equipment. Our product line includes linear scales, rotary and angular encoders, digital readouts, length gauges, CNC controls, and machine inspection equipment.

ETEL S.A. is based in Switzerland with exclusive North American distribution through HEIDENHAIN CORPORATION in Schaumburg, IL. As a leading international supplier of direct drive and motion control components and integrated systems, ETEL supports high tech industry with linear motors, torque motors, positioning stages, and motion controllers/systems.

For more information, contact HEIDENHAIN’s Public Relations Manager Kathleen Stoneski at (847) 519-4702 or write to us at HEIDENHAIN CORPORATION, 333 E. State Parkway, Schaumburg, IL 60173.
